This automatic mineral water filling machine mainly used in the water filling operations, the three function of bottle washing, filling and capping are composed in one body of the machine, the whole process is automatic, it is conveniently turnked to adjust the machine to fill various types of bottles, the filling operation is faster and more stable due to the advanced filling valve technology, The famous brand programmed controller (PLC) is adopted to control the machine runs automatically. It is an ideal preferred equipment for beverage maker
- Washing part:

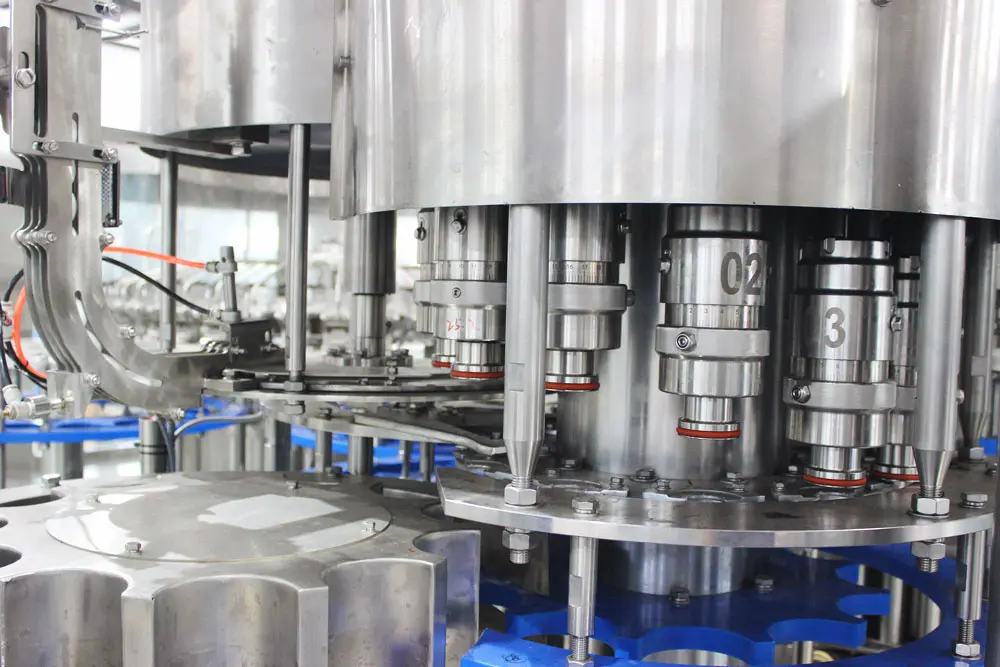

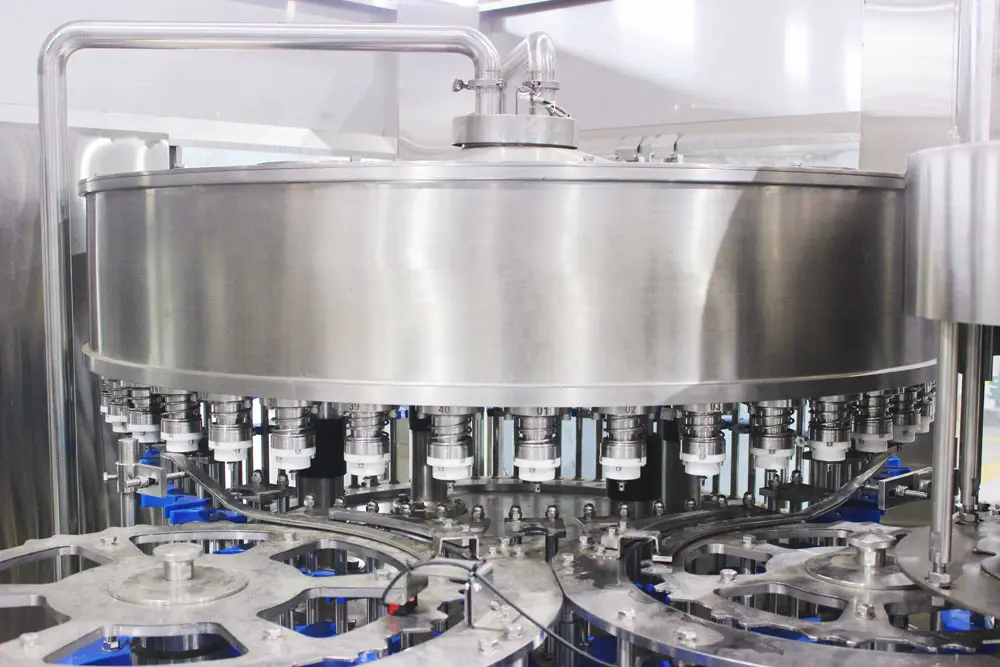

The filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc. The bottle is conveyed to the bottling machine with the clamp plate of starwheel drive bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descends and lose the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of starwheel drive.
- Filling part:
Capping partCapper is the machine with highest precision, influence very much withThe filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device, etc. The bottle is conveyed to the bottling machine with the clamp plate of starwheel drive bottling bottle clamp plate supports the bottleneck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descends and lose the bottling valve, bottling valve may automatically close. The bottle is discharged from the bottling machine along with the clamp plate of starwheel drive.
- Capping part:
Capping partCapper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping All 304stainless steel construction Cap unscrambler, cap drop rail and capper Minimum bottle crash during capping
Technical Parameters
| Model | XGF14-12-5 | XGF18-18-6 | XGF24-24-8 | XGF32-32-10 | XGF40-40-12 | XGF50-50-15 / XGF60-60-15 |
|---|---|---|---|---|---|---|
| Number of rinsing head | 14 | 18 | 24 | 32 | 40 | 50 / 60 |
| Number of filling head | 12 | 18 | 24 | 32 | 40 | 50 / 60 |
| Number of capping head | 5 | 6 | 8 | 10 | 12 | 15 / 15 |
| (500ml) Rated production capacity (BPH) | 3000–4000 | 5000–6000 | 8000–12000 | 12000–15000 | 16000–20000 | 22000–28000 / 28000–32000 |
| Installed capacity (KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 / 9.6 |
| Overall size (L×W×H mm) | 2200×1600×2300 | 2450×1900×2300 | 2750×2180×2400 | 4000×2300×2300 | 4550×2650×2300 | 5450×3210×2300 |
